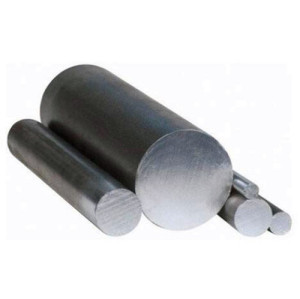

1.4313 X3CrNiMo13-4 Martensitic Stainless Steel Round Bar
1.4313 X3CrNiMo13-4 Martensitic Stainless Steel Round Bar

Item specifics

Delivery condition
annealed
Surface condition
Black, Machined

Review

Description

1.4313 X3CrNiMo13-4 Martensitic Stainless Steel



Introduce

1.4313 Stainless steel is a martensitic stainless steel grade, which can be hardened with heat treatment. This grade is written as 1.4313 or X3CrNiMo13-4 according to EN norm and it is written as UNS S41500 according to UNS norm. It starts with 415 number according to UNS norm so because of this, some sources accept this grade also as AISI 415 stainless steel. 1.4313 material is a magnetic grade and 1.4313 heat treated according to the following three different heat treatment conditions: QT650, QT780, QT900. The numbers 650, 780 and 900 are showing the minimum tensile MPA strength of the materials.

Our supply size:

Diameter : 80 to 600 mm ;

Length : 1000 to 9000 mm ;



Our advantage:

1. High Quality, Reasonable Price

2. Over 40 Years Experience

3. ISO NQA Certificated Factory

4. Worldwide shipping

5. Emergency Orders and Fast Delivery



Equivalent grades of steel X3CrNiMo13-4 (1.4313)

EU

USA

France

Sweden

EN

-

AFNOR

SS

X3CrNiMo13-4

S41500

Z6CN13-04

2385



Chemical composition % of steel X3CrNiMo13-4 (1.4313): EN 10088-2-2005

C

Si

Mn

Ni

P

S

Cr

Mo

N

max 0.05

max 0.7

max 1.5

3.5 - 4.5

max 0.04

max 0.015

12-114

0.3 - 0.7

max 0.02



Mechanical properties of steel X3CrNiMo13-4 (1.4313)

Rm - Tensile strength (MPa) (+A)

1100

Rm - Tensile strength (MPa) (+QT650)

700-800

Rm - Tensile strength (MPa) (+QT780)

780-980

Rm - Tensile strength (MPa) (+QT900)

900-1100

Rp0.2 0.2% proof strength (MPa) (+QT650)

520

Rp0.2 0.2% proof strength (MPa) (+QT780)

620

Rp0.2 0.2% proof strength (MPa) (+QT900)

800



Smelting Option

1 EAF: Electric Arc Furnace

2 EAF+LF+VD: Refined-smelting and vacuum degassing

3 EAF+ESR: Electro Slag Remelting

4 EAF+PESR: protective atmosphere Electro Slag Remelting

5 VIM+PESR: Vacuum induction melting



Forming Option

1 Hot rolling process

2 Hot Forging: Electro-hydraulic; High-speed-hydraulic; Oil-hydraulic; Precision-forging



Heat-treatment Option

1 +A: Annealed (full/soft/spheroidizing)

2 +N: Normalized

3 +NT: Normalized and tempered

4 +QT: Quenched and tempered (water/oil)



Surface Option

1 Black Surface

2 Grounded: Bright but rough ; Not precision

3 Machining for plate: Bright and precision; Little turning scar

4 Peeled/Turned: Bright and precision; Little turning scar

5 Polished: Very Bright and precision size; Not turning scar



Other Services

1 Cutting: Small pieces

2 CNC Machine: Produce as your drawing

3 Package: Bare/Nylon/Canvas/Wooden

4 Payment:T/T, L/C, O/A(request credit)

5 Transport:FOB/CFR/CIF/DDU/DDP (train/ship/Air)



Mill test certificate

EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.
