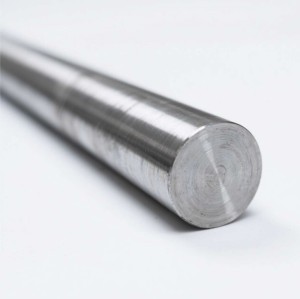

2.4668 Inconel 718 N07718 Nickel-base Alloy Round Bar
- Model
- Inconel 718
Item specifics
- Diameter
- 30-200mm
- Delivery condition
- Solution
- Surface condition
- black, bright
Review
Description
Introduction:
Inconel 718 is one kinds of heat resistant alloys which is a high strength, corrosion resistant nickel chromium alloy used at -423°F to 1300°F, initially developed for the aerospace industry and still considered the material of choice for the majority of aircraft engine components. Its excellent strength and corrosion resistance have beenrecognised by the oil industry and it is now widely used in this field.
Applications:
Gas turbine engine parts
Liquid fuel rocket motor components
Springs, fasteners
Cryogenic tanks
Size Range:
Plate and Sheet: Thickness: 0.016″-3.00″, Width: 20″-48″
Round Bar: 1/4″ Diameter to 12″ Diameter
Tube (welded & seamless): Outer Diameter: 1/16″-3″, Wall Thickness: 0.010″-0.250″,
Length: 17’/24′ FT R/L
Pipe: 1/4″ sch 10 to 16″ sch 80
Wire: 0.1mm-20mm
Chemical Composition(%)
C | Si | Mn | P | S | Cr | Ni | Nb+Ta | Co | Mo | Fe | Al | Ti | Cu | B |
0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.015 max | 17.0-21.0 | 50.0-55.0 | 4.75-5.50 | 1.0 max | 2.8-3.3 | balance | 0.2-0.8 | 0.65-1.15 | 0.3 max | 0.006 max |
Mechanical Properties (solution + precipitation harden)
Tensile Strength Rm (Mpa) | Yield Strength Rp0.2 (Mpa) | Elongation % in 2″ (50.8 mm) | Reduction Of Area (%) | Hardness (HBW) |
1275 min | 1034 min | 6 min | 8 min | 331 min |
