2.4694 Nickel Alloy Bar
2.4694 Nickel Alloy Bar

Review

Description

2.4694 Nickel Alloy Bar - Premium High Temperature Steel

Manufactured by FUSHUN METAL - Your Trusted Steel Partner

Steel Grade Introduction and Applications

2.4694 is a premium nickel-based superalloy, also known as Inconel 617, developed for extreme high-temperature applications. This exceptional alloy demonstrates outstanding resistance to oxidation and corrosion while maintaining excellent mechanical properties at elevated temperatures up to 1000°C. FUSHUN METAL specializes in providing high-quality 2.4694 alloy bars that meet the most demanding industrial requirements.

Primary Applications:

Aerospace Industry: Gas turbine components, combustion chambers, afterburner parts
Power Generation: Steam generator tubing, heat exchanger components, boiler applications
Chemical Processing: High-temperature furnace components, catalyst support structures
Industrial Furnaces: Heating elements, thermal processing equipment, metallurgical applications

Chemical Composition, Mechanical Properties & Heat Treatment

Chemical Composition (%):

Element Ni Cr Co Mo Al Ti C
Content 44.5-56 20-24 10-15 8-10 0.8-1.5 ≤0.6 0.05-0.15

Mechanical Properties:

Tensile Strength:
≥ 690 MPa (Room Temperature)
Yield Strength:
≥ 275 MPa (Room Temperature)
Elongation:
≥ 30% (in 50mm)
Hardness:
≤ 363 HV

Heat Treatment:

Solution annealing at 1150-1180°C, followed by rapid cooling. FUSHUN METAL ensures all heat treatment processes are conducted under controlled conditions to achieve optimal material properties.

Available Processing Types from FUSHUN METAL

Hot Rolled Bars

Our hot rolled 2.4694 bars are produced using advanced rolling technology, ensuring excellent surface finish and dimensional accuracy. The hot rolling process enhances the material's grain structure, providing superior mechanical properties suitable for high-stress applications.

  • Excellent surface quality
  • Precise dimensional control
  • Enhanced grain structure
  • Cost-effective solution

Hot Forged Bars

FUSHUN METAL's hot forged 2.4694 bars offer superior mechanical properties through controlled deformation processes. The forging process eliminates internal defects and provides enhanced strength characteristics ideal for critical aerospace and power generation applications.

  • Superior mechanical properties
  • Refined grain structure
  • Eliminated internal defects
  • Enhanced fatigue resistance

Available Shapes - Round Bar Specialists

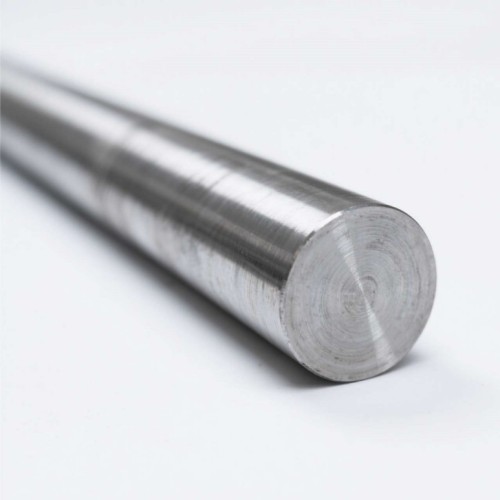

Round Bars

FUSHUN METAL specializes in manufacturing premium 2.4694 round bars with exceptional precision and quality. Our round bars are the preferred choice for applications requiring superior concentricity, surface finish, and dimensional accuracy. Each bar undergoes rigorous quality control to ensure compliance with international standards.

Key Features:

Excellent concentricity • Superior surface finish • Precise dimensional tolerance • Consistent material properties throughout the cross-section

Available Sizes and Custom Solutions

Standard Stock Sizes:

Diameter Range Length Range Tolerance Availability
Ø10-50mm 3000-6000mm ±0.5mm In Stock
Ø50-100mm 3000-6000mm ±0.8mm In Stock
Ø100-200mm 2000-4000mm ±1.0mm Available
Ø200mm+ Custom Custom Custom Order

📞 Inquiry and Custom Orders Welcome!

We maintain regular stock sizes for immediate delivery and welcome your price inquiries!

FUSHUN METAL accepts custom orders for special dimensions and specifications. Our experienced engineering team can work with you to determine the optimal size and processing method for your specific application. Whether you need non-standard diameters, special lengths, or unique surface finishes, we have the capability and expertise to meet your requirements.

Contact us today to discuss your dimensional requirements and receive a competitive quotation!

Why Choose FUSHUN METAL?

⚡ Fast Stock Delivery

Extensive inventory management ensures rapid delivery of standard sizes. Most stock items can be shipped within 24-48 hours of order confirmation, minimizing your project downtime.

🏭 Integrated Manufacturing

Strategic partnerships with leading Chinese manufacturers provide cost-effective solutions without compromising quality. Our integrated supply chain ensures competitive pricing and reliable supply.

⚙️ Precision Machining

Complete machining services including turning, grinding, and finishing operations. We can deliver ready-to-use components, saving our customers valuable time and manufacturing costs.

💰 Cost Optimization

Our streamlined operations and direct manufacturer relationships enable us to offer competitive pricing while maintaining the highest quality standards. Reduce your total cost of ownership with FUSHUN METAL.

FUSHUN METAL - Your Premier Partner for High-Performance 2.4694 Nickel Alloy Bars

Excellence in Quality • Speed in Delivery • Innovation in Solutions
