1.4460 X3CrNiMoN27-5-2 Austenitic-Ferritic Stainless Steel
1.4460 X3CrNiMoN27-5-2 Austenitic-Ferritic Stainless Steel

Review

Description

1.4460 Austenitic-Ferritic Stainless Steel

Premium Duplex Stainless Steel from FUSHUN METAL

Steel Grade Introduction and Applications

1.4460 (also known as X3CrNiMoN27-5-2, AISI 329, SS 2324, PRODEC®) is a premium austenitic-ferritic stainless steel supplied by FUSHUN METAL. This high-performance duplex stainless steel is characterized by excellent resistance to pitting corrosion, crevice corrosion, stress corrosion, and corrosion fatigue. The steel combines high strength with excellent machinability and superior toughness properties.

FUSHUN METAL ensures consistent quality and reliable supply of this specialized stainless steel grade, meeting stringent requirements for marine applications, chemical processing, and high-performance engineering components. The two-phase microstructure and low carbon content provide superior resistance to intergranular corrosion after sensitization.

Key Characteristics:

✓ Excellent Corrosion Resistance
Superior to T316 type in chloride environments
✓ High Strength
Enhanced mechanical properties
✓ Excellent Machinability
Easy machining characteristics
✓ High Toughness
Superior impact resistance

Primary Applications:

Marine Applications
Propeller shafts and marine hardware
Pump Components
Pump shafts, impellers, and parts
Valve Parts
Valve components and trim parts
Mechanical Components
Spindles, stirrers, and pistons
Fasteners
Bolts, nuts, and fastening systems
Chemical Processing
Equipment in corrosive environments

Chemical Composition, Mechanical Properties & Heat Treatment

Chemical Composition (Typical Analysis)

Element C Cr Ni Mo
Content (%) 0.025 25.4 5.75 1.5

Mechanical Properties (Solution Annealed Condition)

Property Value Unit
Tensile Strength (Rm) 620-880 N/mm²
Proof Strength (Rp0.2) Min. 460 N/mm²
Elongation (A5) Min. 20 %
Impact Energy (KV-RT) Min. 85 J/cm²
Hardness (HB) Max. 260 HB

Physical Properties

Property 20°C 200°C 300°C
Density 7.8 kg/dm³
Modulus of Elasticity 200 194 186
Thermal Expansion (10⁻⁶ K⁻¹) - 13.0 13.5
Thermal Conductivity 15 W/m°C
Electrical Resistivity 0.8 Ωmm²/m
Specific Heat 500 J/kg°C

Heat Treatment

Treatment Temperature Holding Time Cooling
Solution Annealing 950-1000°C Approx. 30 min Water quenching

Delivery Condition: 1.4460 is supplied by FUSHUN METAL in solution annealed condition for optimal corrosion resistance and mechanical properties.

Important Note: The steel is susceptible to embrittlement when applied in the temperature range of 300-900°C.

Service Temperature: Scaling temperature in air is approximately 1070°C.

Available Sizes from FUSHUN METAL

FUSHUN METAL maintains comprehensive inventory of 1.4460 austenitic-ferritic stainless steel in various sizes to meet diverse industrial requirements. Our standard sizes are readily available from stock for immediate delivery.

Standard Stock Sizes Available:

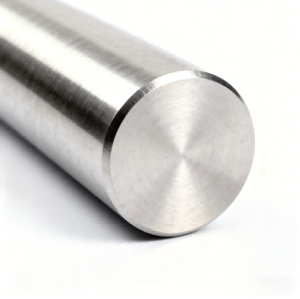

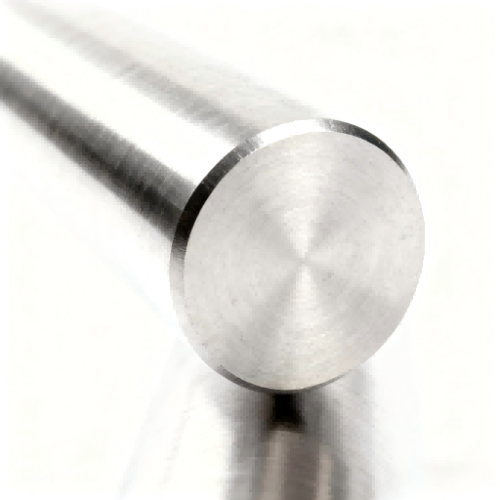

Round Bars: Diameter 10mm to 300mm, Length up to 6000mm

Flat Bars: Thickness 5mm to 150mm, Width up to 500mm

Square Bars: 10mm × 10mm to 200mm × 200mm

Plates: Thickness 6mm to 100mm, Custom dimensions available

Shafts: Precision ground shafts for marine and pump applications

Bar Finish: Machined or ground surface finish available

Stock Advantage: Standard sizes are maintained in inventory for fast delivery and competitive pricing, ensuring minimal lead times for marine and chemical processing projects.

Custom Manufacturing: We accept custom orders for non-standard dimensions and special requirements. Please contact us to discuss your specific size requirements and production capabilities.

Quote Request: Contact FUSHUN METAL today for competitive pricing on standard sizes or custom manufacturing solutions for your 1.4460 applications.

FUSHUN METAL Advantages

Fast Stock Delivery

Extensive inventory of 1.4460 ensures rapid delivery of standard sizes, minimizing your project downtime and maintaining production schedules for marine applications, pump manufacturing, and valve production.

Integrated Manufacturing Network

Strategic partnerships with leading Chinese specialty stainless steel producers ensure consistent quality, competitive pricing, and reliable supply chain management for premium duplex stainless steels like 1.4460.

Precision Machining Services

Complete machining capabilities including turning, grinding, and precision finishing services to deliver ready-to-use components for marine, pump, and valve applications, saving time and costs for downstream customers.

Technical Expertise

Professional technical support and consultation services to help customers optimize material selection, heat treatment, welding procedures, and application-specific solutions for 1.4460 in corrosive environments and demanding marine applications.

Contact FUSHUN METAL Today

Experience the FUSHUN METAL advantage in premium stainless steel supply. Contact us for competitive quotes, technical consultation, and reliable delivery solutions for your 1.4460 requirements in marine, pump, valve, and chemical processing applications.
