AISI 329 Duplex Stainless Steel

Premium Austenitic-Ferritic Steel from FUSHUN METAL

Steel Grade Introduction and Applications

AISI 329 (also known as 1.4460, X3CrNiMoN27-5-2, SS 2324, PRODEC®) is a premium duplex stainless steel supplied by FUSHUN METAL. This high-performance austenitic-ferritic stainless steel is characterized by excellent resistance to pitting corrosion, crevice corrosion, stress corrosion, and corrosion fatigue. The steel combines high strength with excellent machinability and superior toughness properties, making it ideal for demanding marine and industrial applications.

FUSHUN METAL ensures consistent quality and reliable supply of this specialized AISI 329 duplex stainless steel, meeting stringent requirements for marine applications, chemical processing, and high-performance engineering components. The two-phase microstructure and low carbon content provide superior resistance to intergranular corrosion after sensitization, with corrosion resistance much better than fully austenitic stainless steels of T316 type.

Key Characteristics:

✓ Excellent Corrosion Resistance
Superior to T316 type in chloride-bearing environments
✓ High Strength
Enhanced mechanical properties with duplex structure
✓ Excellent Machinability
Easy machining characteristics for complex components
✓ High Toughness
Superior impact resistance and durability

Primary Applications:

Marine Applications
Propeller shafts and marine hardware components
Pump Components
Pump shafts, impellers, and parts
Valve Parts
Valve components and trim parts
Mechanical Components
Spindles, stirrers, and pistons
Fasteners
Bolts, nuts, and fastening systems
Chemical Processing
Equipment in corrosive environments

Chemical Composition, Mechanical Properties & Heat Treatment

Chemical Composition (Typical Analysis)

Element C Cr Ni Mo
Content (%) 0.025 25.4 5.75 1.5

Mechanical Properties (Solution Annealed Condition)

Property Value Unit
Tensile Strength (Rm) 620-880 N/mm²
Proof Strength (Rp0.2) Min. 460 N/mm²
Elongation (A5) Min. 20 %
Impact Energy (KV-RT) Min. 85 J/cm²
Hardness (HB) Max. 260 HB

Physical Properties

Property 20°C 200°C 300°C
Density 7.8 kg/dm³
Modulus of Elasticity (kN/mm²) 200 194 186
Thermal Expansion (10⁻⁶ K⁻¹) - 13.0 13.5
Thermal Conductivity 15 W/m°C
Electrical Resistivity 0.8 Ωmm²/m
Specific Heat 500 J/kg°C

Heat Treatment

Treatment Temperature Holding Time Cooling
Solution Annealing 950-1000°C Approx. 30 min Water quenching

Delivery Condition: AISI 329 is supplied by FUSHUN METAL in solution annealed condition for optimal corrosion resistance and mechanical properties.

Important Note: The steel is susceptible to embrittlement when applied in the temperature range of 300-900°C.

Service Temperature: Scaling temperature in air is approximately 1070°C.

Corrosion Resistance & Welding Properties

Corrosion Resistance

AISI 329 shows very good corrosion resistance particularly in chloride-bearing environments. Its resistance to chloride-caused attacks such as pitting, crevice corrosion, stress corrosion, and corrosion fatigue is much better than that of fully austenitic stainless steels of T316 type.

In most cases, AISI 329 is much better than T316 type with regard to general corrosion resistance in reducing and oxidizing acids. The two-phase microstructure and low carbon content render AISI 329 better resistance to intergranular corrosion after sensitization within the temperature interval 500-900°C.

Recommendation: When extremely high demands are imposed on resistance to pitting and crevice corrosion, it is recommended that machining of the steel surface be followed by pickling or passivation.

Welding Properties

AISI 329 possesses good weldability and can be welded in the same manner as austenitic material. Welding should be carried out without preheating and with small weld beads, with as little heat supply as possible.

It is not necessary to use welding consumables of the same steel grade, as austenitic ones can also be used effectively.

Note: Welding of AISI 329 and subsequent application in highly corrosive environments could lead to a reduction in corrosion resistance. After annealing at 980°C and quenching in water, the corrosion resistance of the weld will be just as high as that of the base material.

Available Sizes from FUSHUN METAL

FUSHUN METAL maintains comprehensive inventory of AISI 329 duplex stainless steel in various sizes to meet diverse industrial requirements. Our standard sizes are readily available from stock for immediate delivery.

Standard Stock Sizes Available:

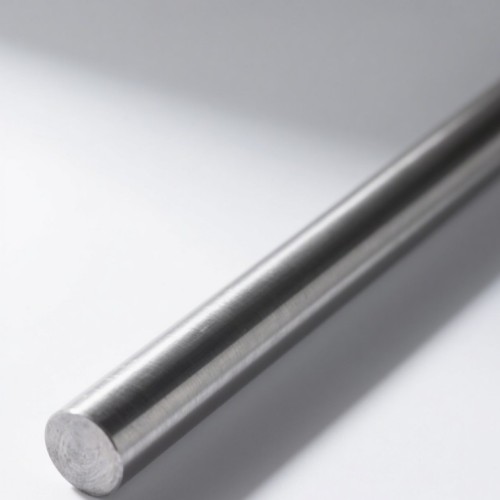

Round Bars: Diameter 12mm to 350mm, Length up to 6000mm

Flat Bars: Thickness 6mm to 200mm, Width up to 600mm

Square Bars: 12mm × 12mm to 250mm × 250mm

Plates: Thickness 8mm to 150mm, Custom dimensions available

Marine Shafts: Precision machined shafts for marine applications

Bar Finish: Machined or ground surface finish available

Stock Advantage: Standard sizes are maintained in inventory for fast delivery and competitive pricing, ensuring minimal lead times for marine, pump, and valve manufacturing projects.

Custom Manufacturing: We accept custom orders for non-standard dimensions and special requirements. Please contact us to discuss your specific size requirements and production capabilities.

Quote Request: Contact FUSHUN METAL today for competitive pricing on standard sizes or custom manufacturing solutions for your AISI 329 applications.

FUSHUN METAL Advantages

Fast Stock Delivery

Extensive inventory of AISI 329 ensures rapid delivery of standard sizes, minimizing your project downtime and maintaining production schedules for marine applications, pump manufacturing, and valve production.

Integrated Manufacturing Network

Strategic partnerships with leading Chinese specialty stainless steel producers ensure consistent quality, competitive pricing, and reliable supply chain management for premium duplex stainless steels like AISI 329.

Precision Machining Services

Complete machining capabilities including turning, grinding, and precision finishing services to deliver ready-to-use components for marine, pump, and valve applications, saving time and costs for downstream customers.

Technical Expertise

Professional technical support and consultation services to help customers optimize material selection, heat treatment, welding procedures, and application-specific solutions for AISI 329 in demanding marine and corrosive environments.

Contact FUSHUN METAL Today

Experience the FUSHUN METAL advantage in premium duplex stainless steel supply. Contact us for competitive quotes, technical consultation, and reliable delivery solutions for your AISI 329 requirements in marine, pump, valve, and chemical processing applications.
